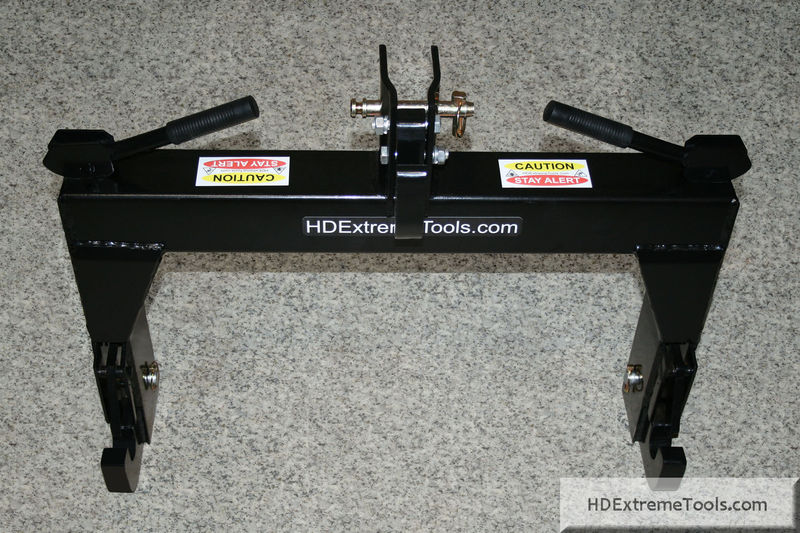

Quick Connect Hitches for Tractors

Our 3 Point Quick Hitch allows you to switch out all of your implements on your tractor without having to get out of your seat or attach stuff to your implements. No mess, no fuss. Our Quick Hitch securely locks in the implements and allows them the room they need to move. No more messing around in the heat or cold trying to line up your 3 point and beating in your lower pins, just back up and lift.



Features:

  • Made in the USA by local welders to ASAE specifications
  • 2 year warranty an industry first!
  • Hardened bolts and fittings
  • Forged Pins
  • High strength extra thick Metal for greater torsional loading
  • Spring loaded locking cam latch handles
  • Our unique multi step coating process allows our Quick Hitch to withstand daily use that other products just aren’t able to handle. After your Quick Hitch is made we:
    • Bead blast it to remove mill, rust scale, dirt, weld slag and any foreign materials
    • Then we use a chemical solvent to clean it and remove any grease or oil
    • Next we pre-heat it and apply the thermoset coating
    • Then we bake it at 350° to 375° F
    • After it cools we then prime it 2x and paint it black 3x with Rust Oleum paint
  • Both come complete with everything included to use right away including pins
  • Cat 1:
    • 2,000 lbs. Capacity
    • Adjustable top hook from 15" to 18-1/8”
    • Bottom hooks use ID 27-3/16", OD 29-5/8" space per ASAE specs.
    • 23-3/4" high
    • 61 lbs.
    • Some companies' implements are not made to ASAE specs., so if your implement top pin does not line up with your bottom pins or you do not have clearance for the top hook, then order with the New Hitch Adapter or the standard Hitch Adapter
  • Cat 2:
    • 3,600 lbs. Capacity
    • 100 HP Max
    • Has a fixed top hook due to torsional forces that could happen @ 15-1/8" center TLP to center DP per ASAE specs.
    • Bottom hooks use ID 32-7/8", OD 36.5" space per ASAE specs.
    • 23-1/4" high
    • 1/2" thick metal on legs
    • 3/4" thick metal on TLP Bracket
    • 134 lbs.

Why should I buy this from HDExtremeTools?



Simple Answer: Ours is better than the competitors and has a 2 year warranty not 1 year or 90 days! Plus it will cost you less total money to buy because of our low shipping costs. As of April 2016 a similar model by our competitors with a 1 year warranty costs $266.95 and costs $138.98 to ship, which equals a whopping $405.93 for a Cat 1. That is insane!

We have 2 shipping options for you, West if you live west of the Mississippi and East if you live east of the Mississippi. Simple straight forward shipping!
