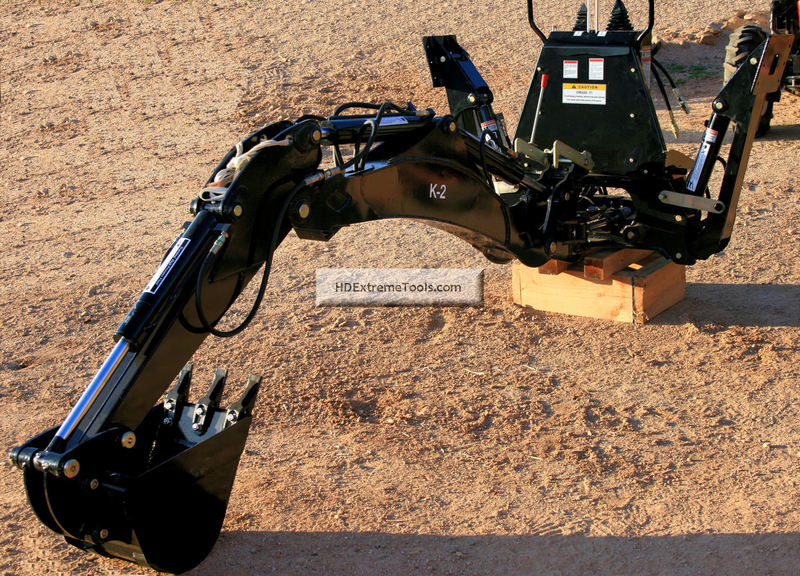

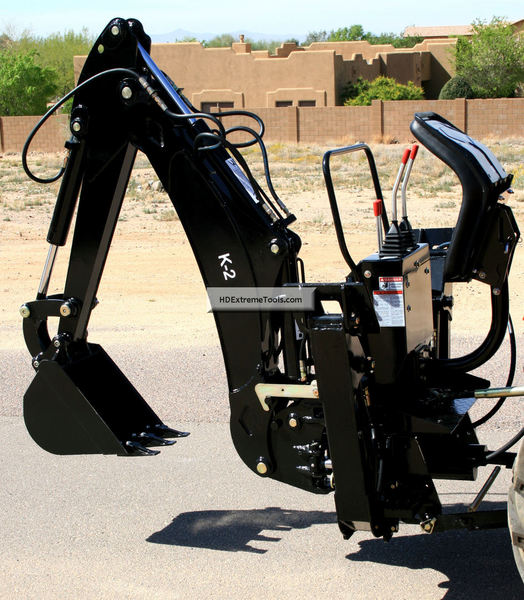

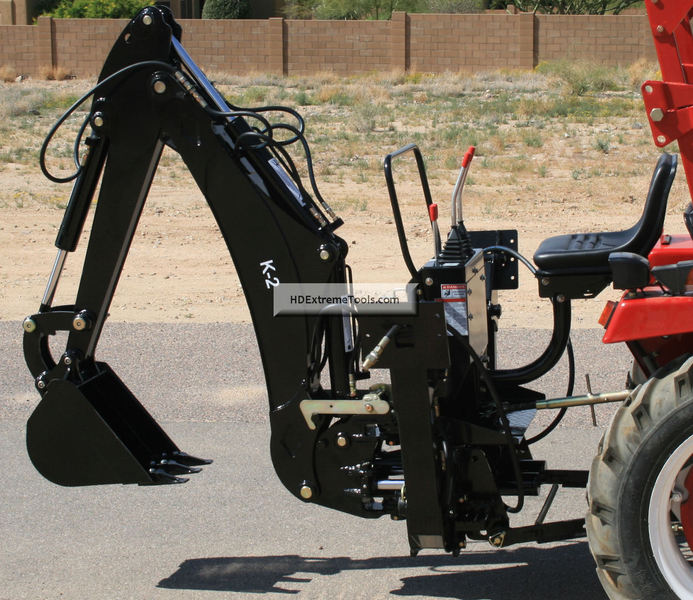

K-2 Backhoe for Tractors

The K-2 Backhoe is a high quality heavy duty 3 point backhoe attachment with reinforced stress and lift points. The professional grade Italian made hydraulic system allows you to work smoothly and efficiently and is built to last. The K-2 is designed to give you a smooth operation for more exact work and less operator fatigue.



Features:

  • Heavy duty thick metal with reinforced stress points,
  • Built in lift points,
  • 4 way Adjustable seat; forwards/backwards and seat pole has 2 settings high/low,
  • Curved boom for more efficient operation. The Boom does not touch the edge of the excavation hole for deep digs which prevents dirt from falling back into the hole and protects the backhoe.
  • Italian made hydraulic system allows you to work smoothly and efficiently,
  • Dual Swing Cushioned Cylinders,
  • Independently operated Cushioned stabilizer legs,
  • Locking boom, legs and swing for transportation,
  • Hardened bushings and grease-able pins in all main pivot points ease maintenance while reducing wear and tear,
  • Cushioned flip up seat with drain hole,
  • Powder Coated and Durable black gloss finish,
  • Yellow zinc dichromate plated wear parts,
  • High luster multi dip chrome parts,
  • All 3 point Cat 1 and Cat 2 tractors,

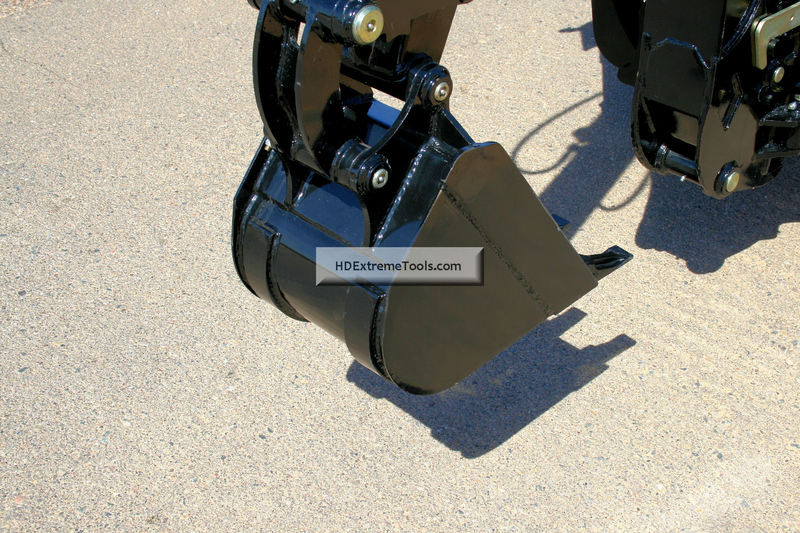

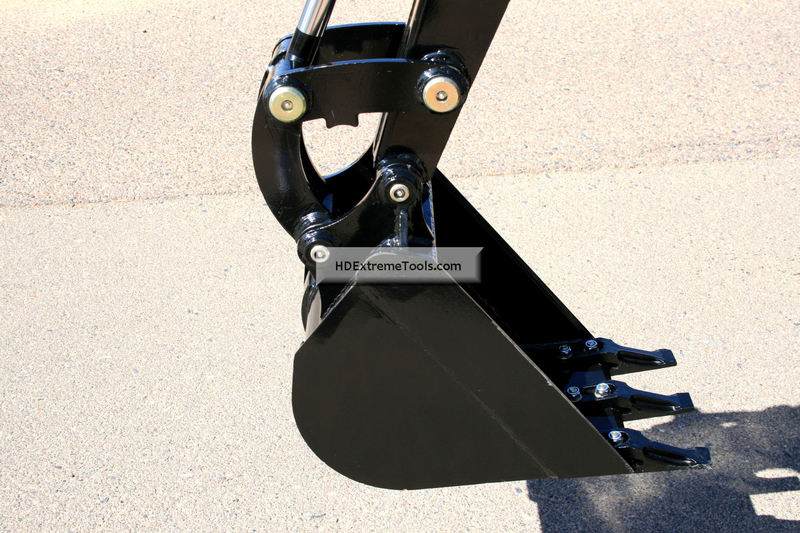

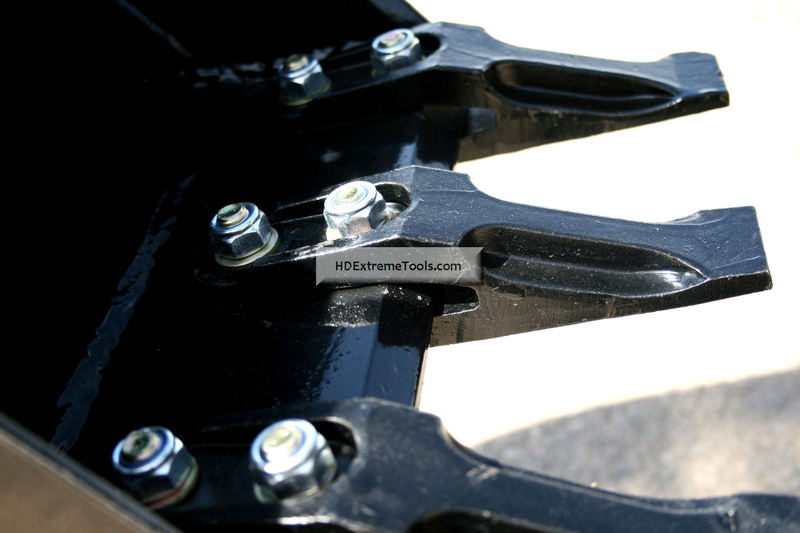

  • Heavy Duty reinforced and ribbed buckets with replaceable teeth,
  • Comes standard with a 12" bucket,
  • Many popular bucket sizes available,
  • Digging Depth: 7'2",

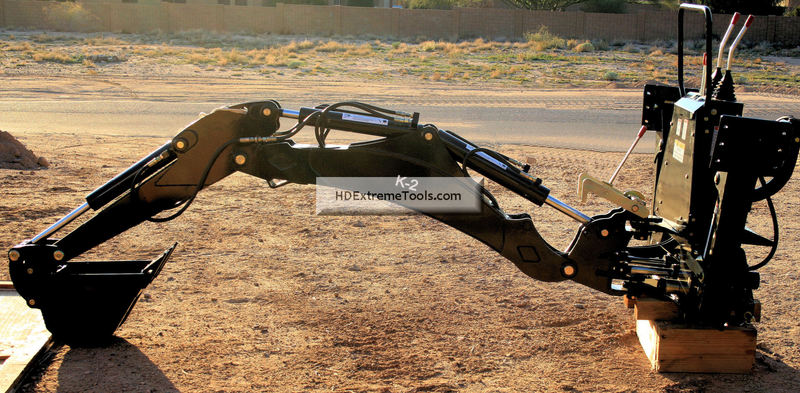

  • Reach: 10’ 6”,
  • Weight: 990 lbs.

Quick Specs.

  • Digging Depth with 2’ flat bottom: 86.6”
  • Reach from center line of swing pivot: 126”
  • Swing Arc: 180 Deg.
  • Bucket Rotation: 180 Deg.
  • Stabilizers Spread down: 68.9”
  • Stabilizers Spread Up: 46.5”
  • Angle of Departure: Over 21 Deg.  depending on tractor
  • Bucket Digging Force:  2,592 lbs.
  • Dipperstick Digging Force: 1,975 lbs.
  • Average Operating Pressure: 2,320 psi
  • Boom Cylinder Bore Diameter: 2.75”
  • Bucket Cylinder Bore Diameter: 2.36”
  • Dipperstick Cylinder Bore Diameter: 2.36”
  • Swing Cylinder Bore Diameter: 2.36”
  • Stabilizer Cylinder Bore Diameter: 2.36”
  • Fits Cat 1 or 2

K-2 Backhoe completely assembled and tested.



  • 2 Year factory warranty upgradable
  • Weight 1,200 lbs.

K-2 Backhoe Simple Assembly



  • Simple assembly
  • 1 Year factory warranty upgradable
  • Dimensions 89x48x40”
  • Weight 1,200 lbs.

Made in the USA

and

Proud of it!

Extreme tools for fair prices

If you find a similar product and want us to match the price call 480-770-6439

Tested and loved by owners

Don't make the mistake many people do and buy inferior products at cheap prices. As my grandfather use to say "Long after the sweetness of price is forgotten, the bad taste of poor quality stays around."

100% Customer satisfaction is our main goal!
