Universal Wheel Kits

Due to the special financing we offered we underestimated our needed quantity and have sold out our entire inventory and have a wait list as we build more. Currently our wait list has just gone to the end of September. Please be aware that if you order this item, you will not receive it until after September. We will update you here if we are able to build any faster, but we will not sacrifice quality for quantity.



Sorry , we are not taking anymore orders on this until our welders get caught up

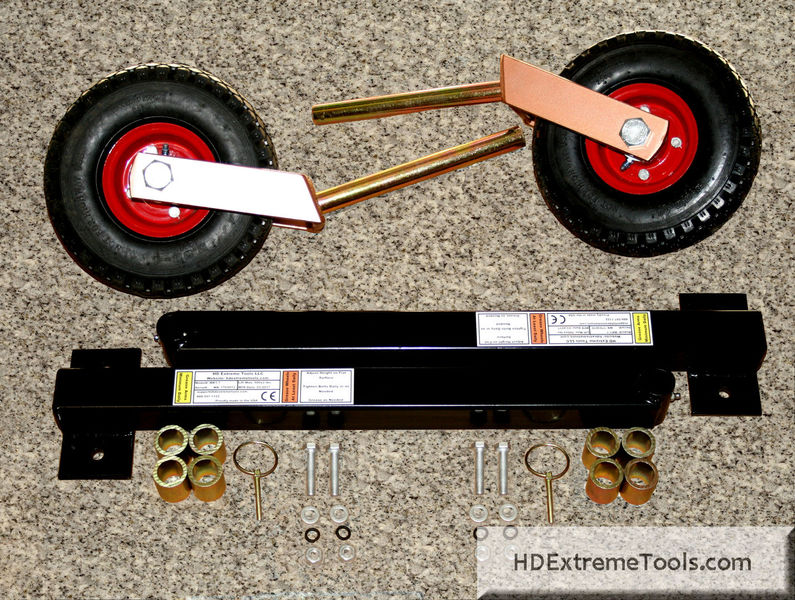

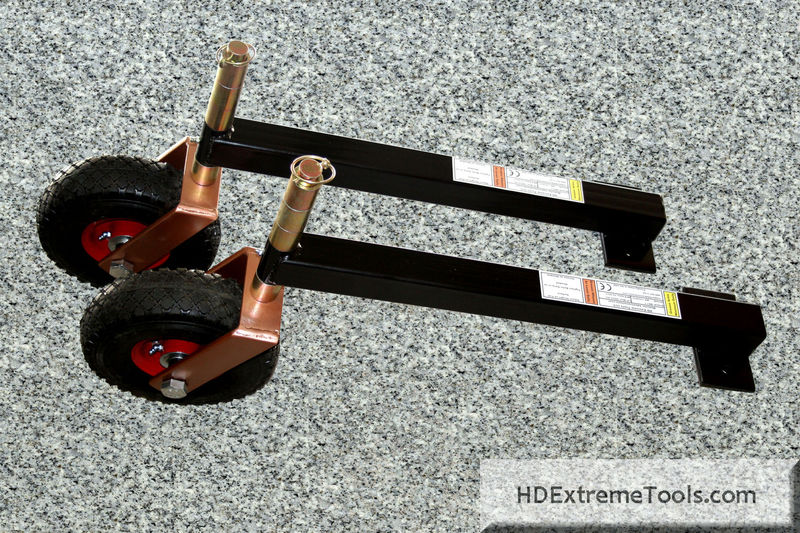

HDExtremeTools complete Universal Wheel Kits work with all sizes and shapes of landscaper rakes, graders, box scrapers, compactors, row cultivators, or anything else up to 1,100 lbs total weight. These super strong wheel kits can be added to any implement and they provide everything you need to mount a wheel kit onto your landscaping rake using the bolt holes for your tines with no modification needed to your rake. It does not matter if your tines are 1 or 2 hole, or if they have wavy tine plates; we give you extra-long hardened bolts to replace your existing tine bolts.



HD Extreme Tools LLC wheel kits are made to provide you with years of service and to help you achieve the perfect grade you are looking for or to remove “wash boards” and rake up rocks, sticks or leaves to keep things clean without having to worry about digging in and ruining your grass with your implements.

Quick Specs.

  • Works with all implements under 1,100 lbs.
  • Free shipping to your door!
  • 2 year warranty an industry first!
  • Made in the USA by local welders to ASAE specifications
  • High strength extra thick Metal for greater weight carrying ability
  • Fully sealed from the elements to prevent rust on the inside of arms
  • Comes with all hardware to install in a simple bolt-on design
  • Hardened bolts and fittings included
  • Simple no tool fully adjustable height
  • Real Solid Rubber tires with a width of 3-1/8” and a Height of 10” with zirk for greasing
  • 25-1/4” long Arms with zirk for greasing

Full Specifications

Arm:

  • Finished with our premium process powder coat for durability
  • Total length: 25.25” long
  • Made of heavy gauge 2x2 square tube
  • Capped ends fully welded to prevent water or dirt from getting inside
  • Stickers to remind you grease and check bolt tightness

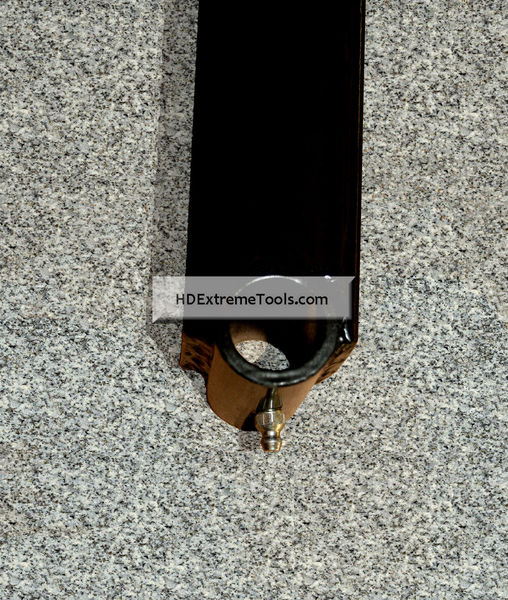

Sleeve for wheel leg:

  • 2-7/8” long fully welded to tube for extra support of weight and minimum shimmy
  • Wall thickness: 3/16” for long lasting strength and de-burred for smooth rotation
  • Zirk fitting to ensure long life

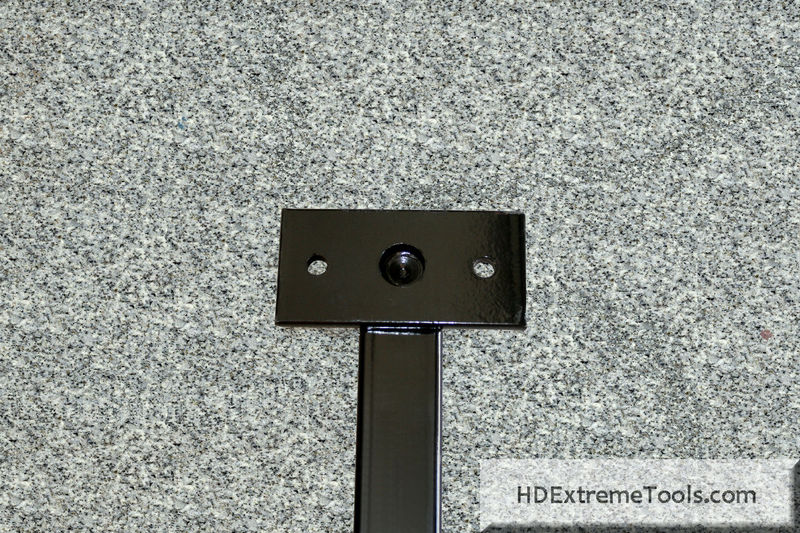

Attachment plate:

  • 6” x 2-15/16” of 7/16” thick metal
  • 2 holes of ½”diameter for mounting on 1st and 3rd tine bolts, so the implement weight can be spread out
  • No modification to plate needed as long as the tines are spaced on 2” centers per standard tine spacing
  • 1” oversized non-penetrating machined recessed bolt head area for 2nd tine bolt to set in so that it lays flush (see photo)
  • For some other implements you may need to drill 2 or 4 holes or weld the plate on as is common with universal wheel kits



Heavy Duty Wheel Clevis Assembly:

  • Complete assembly is fully bonded and coated Yellow zinc dichromate for long lasting rust protection
  • Clevis: 7/16” thick metal with fully welded seams and triple coated Copper Yellow zinc dichromate which not only gives you more protection down at the tire, but gives a nice two tone look!
  • Leg: 1” Diameter of solid metal fully continuously circle welded to Clevis with grease groove at bottom for a full 360 smooth Rotation

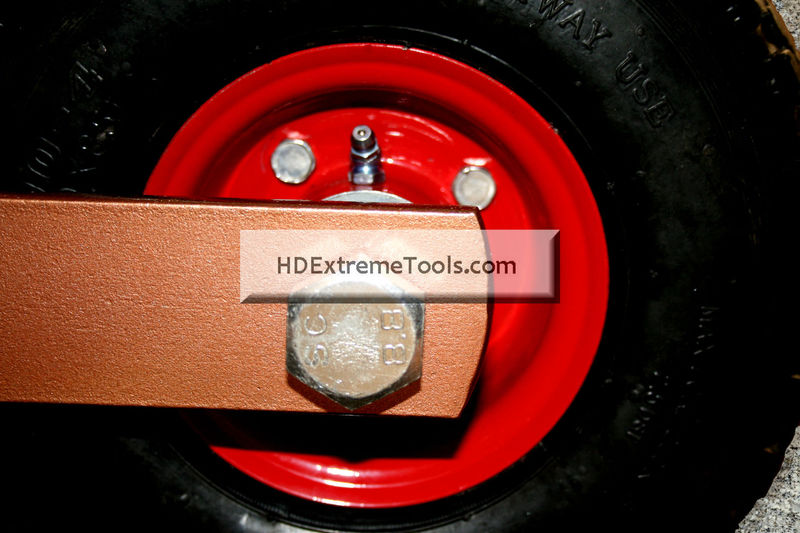

  • Axel: 13/16” thick grade 8.8 bolt
  • Included Yellow zinc dichromate Lynch Pin for no tool height adjustments



Tires:

  • Solid rubber non-pneumatic tires of type 3.00-4 or 260x85 (not those cheap foam filled tires you see or pneumatic tires that need to be replaced every year)
  • Width: 3-1/8”
  • Height: 10”
  • 2 sets of bearings for each tire to carry a heavy load and provide smooth movement with zirk fitting to ensure long life



Spacers:

  • Height: 1.5” Yellow zinc dichromate
  • Wall thickness: 3/16” for long lasting strength and de-burred for smooth rotation
  • Number included in kit: 8 (4 for each wheel leg)
