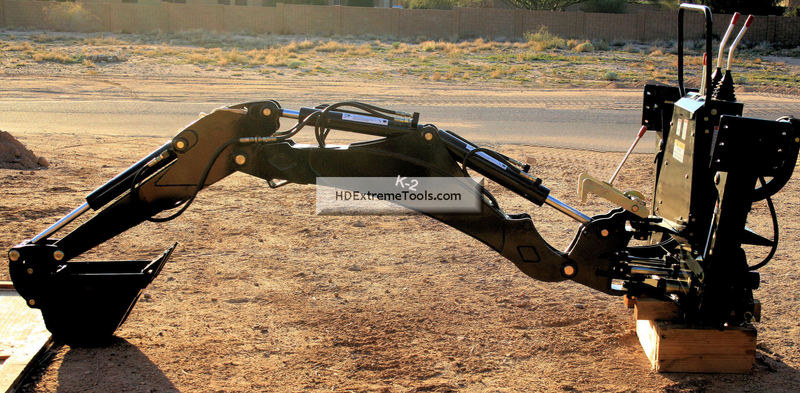

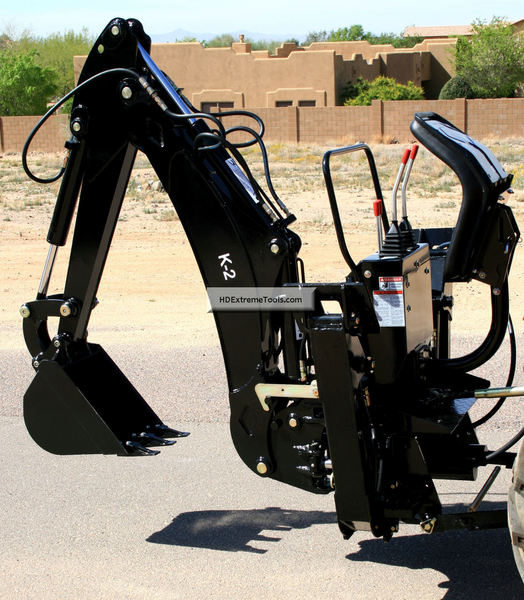

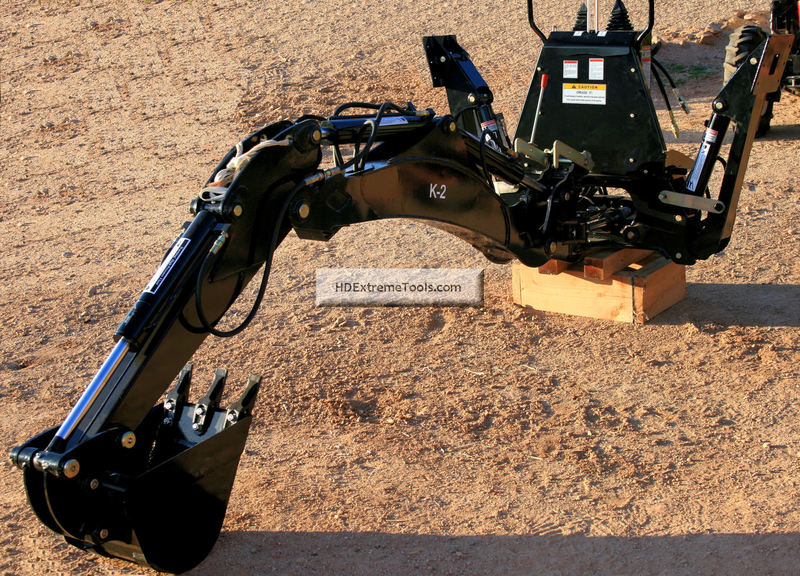

K-2S Backhoe for Skid Loaders

Do you make a living with your Backhoe attachment? If so, then you need the   K-2S. This is an Extreme Grade Tool that will never let you down and it costs less than $5,100!



The Skid Steer Loader K-2S Backhoe is a high quality heavy duty backhoe attachment with reinforced stress and lift points. The professional grade high flow Italian made hydraulic system allows you to work smoothly and efficiently and is built to last. The K-2S is designed to give you a smooth operation for more exact work and less operator fatigue.



The K-2S is securely mounted to a Custom built in the USA universal Skid Steer Quick-Attach mounting plate that is designed for the punishment of a skid steer. We designed and built the mounting plate keeping with our philosophy of well-built and versatile tools in mind. This will allow you to remove the K-2S from the custom built mounting plate and then use the mounting plate for your other 3-point tools along with a built in 2" trailer hitch receiver.



Features:

  • Heavy duty thick metal with reinforced stress points,
  • Built in lift points,
  • 4 way Adjustable seat; forwards/backwards and seat pole has 2 settings high/low,
  • Curved boom for more efficient operation. The Boom does not touch the edge of the excavation hole for deep digs which prevents dirt from falling back into the hole and protects the backhoe.
  • High flow Italian made hydraulic system allows you to work smoothly and efficiently,
  • Dual Swing Cushioned Cylinders,
  • Independently operated Cushioned stabilizer legs,
  • Locking boom, legs and swing for transportation,
  • Hardened bushings and grease-able pins in all main pivot points ease maintenance while reducing wear and tear,
  • Cushioned flip up seat with drain hole,
  • Powder Coated and Durable black gloss finish,
  • Yellow zinc dichromate plated wear parts,
  • High luster multi dip chrome parts,

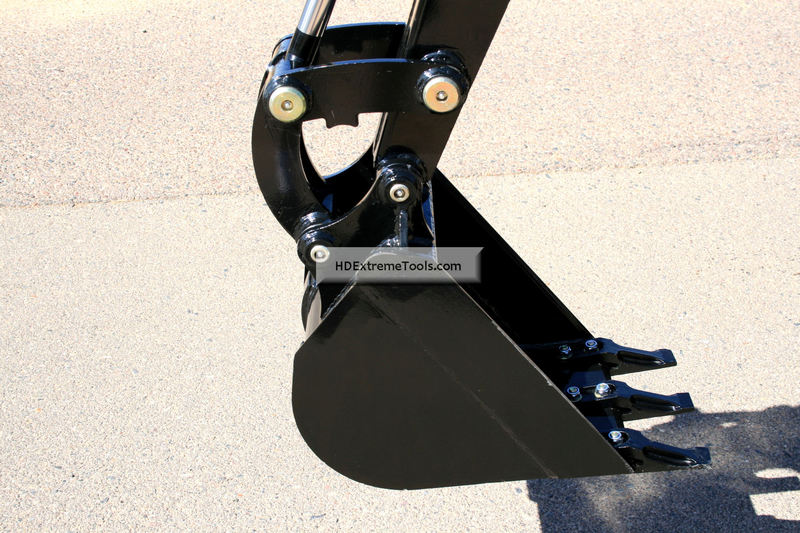

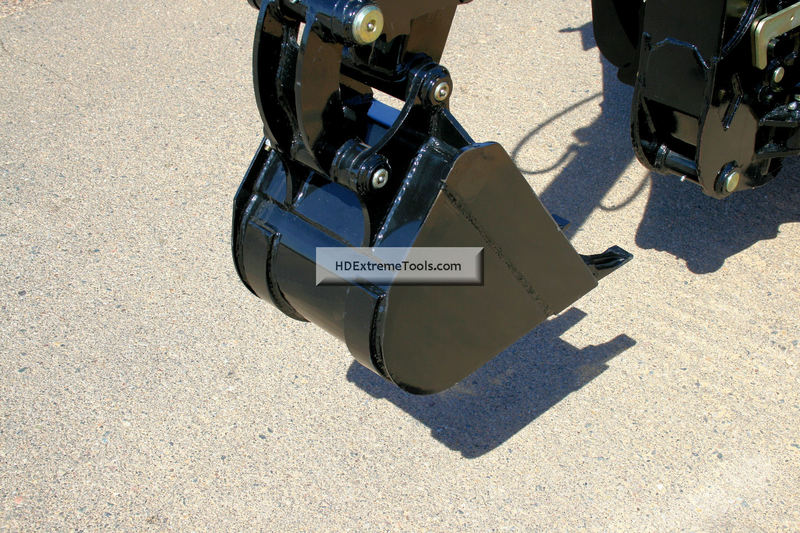

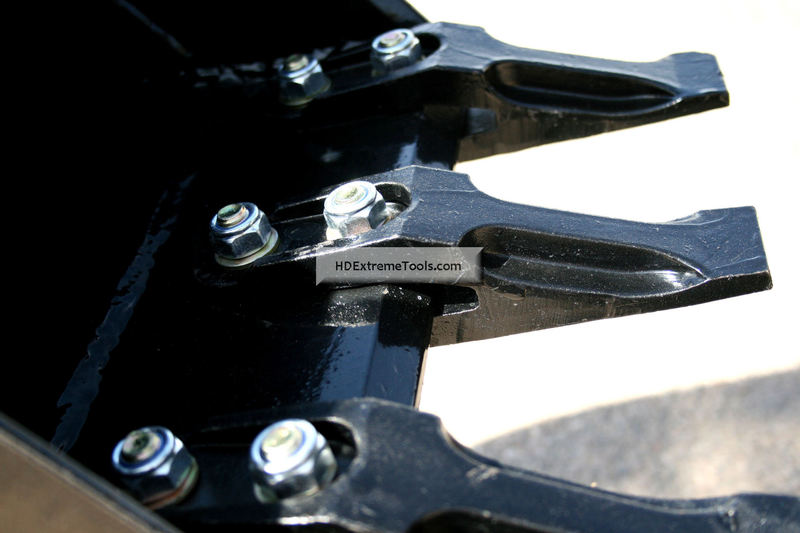

  • Heavy Duty reinforced and ribbed buckets with replaceable teeth,
  • Comes standard with a 12" bucket,
  • Many popular bucket sizes available,
  • Digging Depth: 7'2",
  • Reach: 10’ 6”,
  • Custom built universal Skid Steer Quick-Attach mounting plate,
  • Built in 2" trailer hitch receiver,
  • Sliding draw pin points for quick attach/detach,
  • Grade 5 and above connectors,
  • Large pull pins with handles,
  • Weight: 1,190 lbs.

Quick Specs.

  • Digging Depth with 2’ flat bottom: 86.6”
  • Reach from center line of swing pivot: 126”
  • Swing Arc: 180 Deg.
  • Bucket Rotation: 180 Deg.
  • Stabilizers Spread down: 68.9”
  • Stabilizers Spread Up: 46.5”
  • Angle of Departure min: 21 Deg.
  • Bucket Digging Force:  2,592 lbs.
  • Dipperstick Digging Force: 1,975 lbs.
  • Average Operating Pressure: 2,320 psi
  • Boom Cylinder Bore Diameter: 2.75”
  • Bucket Cylinder Bore Diameter: 2.36”
  • Dipperstick Cylinder Bore Diameter: 2.36”
  • Swing Cylinder Bore Diameter: 2.36”
  • Stabilizer Cylinder Bore Diameter: 2.36”
  • Fits any bob tach or quick hitch compatible skid steer

K-2S Backhoe fully assembled and tested.



  • 2 Year factory warranty upgradable
  • Weight 1,390 lbs.

K-2S Backhoe Simple Assembly



  • Simple assembly
  • 1 Year factory warranty upgradable
  • Dimensions 89x48x40”
  • Weight 1,390 lbs.

Why should I buy this from HDExtremeTools?



Simple Answer: Feature for feature you will not find a better backhoe for under 10K! We have so much faith in our K-2 Backhoe that we offer a 3 year warranty! No one else does this, enough said.
